Description

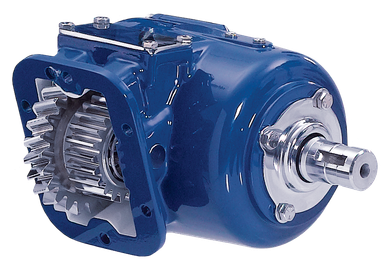

The Muncie CS6N-S7107-E1KX or CS6NS7107E1KX is a CS6 Series power take-off featuring a 6-bolt clutch shift configuration. Part of Muncie’s CS6/CS8 family, this PTO is designed to fit Allison 1000/2000 series transmissions as well as many manual transmissions. It accommodates SAE “A”, “B”, and “BB” and DIN 5462 direct mount pump flanges, with rotatable mounting to position the pump for maximum clearance. Muncie’s patented drag brake prevents output shaft rotation when the PTO is disengaged. Overall dimensions are 11.63 in. H x 13.38 in. W x 15.63 in. L. Call us to confirm proper fit for your specific transmission and application.
Features
CS6 Series 6-bolt clutch shift power take-off
Fits Allison 1000/2000 series and many manual transmissions
SAE “A”, “B”, and “BB”; DIN 5462 direct mount pump flange options
Rotatable direct mount flanges for pump positioning and clearance
Muncie patented drag brake prevents output shaft rotation in OFF mode
Overall dimensions: 11.63 in. H x 13.38 in. W x 15.63 in. L
Tech Specs
- Series: Muncie CS6
- Configuration: 6-Bolt Clutch Shift
- Direct Mount Pump Flanges: SAE “A”, “B”, “BB”; DIN 5462
- Compatible Transmissions: Allison 1000/2000 series and many manual transmissions
- Height: 11.63 in.
- Width: 13.38 in.
- Length: 15.63 in.
- Part Number: CS6N-S7107-E1KX or CS6NS7107E1KX
