Description

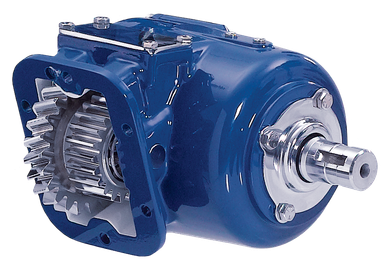

The Muncie CS6C-S6809-E1BX or CS6CS6809E1BX is a CS6 Series power take-off with 6-bolt clutch shift actuation. Part of Muncie’s CS6/CS8 family, it is designed to mount directly on Allison 1000/2000 series automatics as well as many popular manual transmissions. The CS6 Series supports SAE “A”, “B”, and “BB” and DIN 5462 direct-mount pump flanges, and the rotatable direct-mount flange lets you position a hydraulic pump for maximum clearance. A patented Muncie drag brake prevents output shaft rotation when the PTO is disengaged. Three remote-mount output shaft options are available in keyed and flange configurations. Call us to confirm proper fit for your specific transmission and pump setup.
Features
CS6 Series 6-bolt clutch shift power take-off
Fits Allison 1000/2000 series automatics and many popular manual transmissions
SAE “A”, “B”, and “BB”; DIN 5462 direct-mount pump flange compatibility
Rotatable direct-mount flange for pump positioning and clearance
Patented Muncie drag brake prevents output shaft spin in OFF mode
Optional pulse generator supports PTO shaft speed monitoring
Tech Specs
- Series: CS6
- Actuation: Clutch Shift
- Flange Pattern: 6-bolt
- Direct-Mount Pump Flanges: SAE “A”, “B”, “BB”; DIN 5462
- Compatible Transmissions: Allison 1000/2000 series; many manual transmissions
- Output Shaft Options: Three remote-mount styles in keyed and flange types
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
