Description

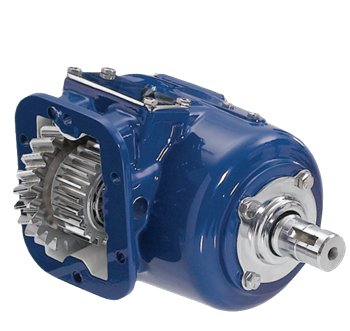

The Muncie CS6 Series power take-off, part number CS6B-A6707-A1BP or CS6BA6707A1BP, is a 6-bolt clutch-shift PTO built for direct pump mounting and remote pump drive applications. It engages 19 transmission input gears, making it compatible with a broad range of automatic transmissions including the Allison 1000 and 2000 series, as well as most popular manual transmissions. Direct mount pump flanges conform to SAE “A”, “B”, and “BB” standards as well as DIN 5462, and they rotate to maximize installation clearance. Muncie’s patented drag brake prevents output shaft rotation when the PTO is disengaged. An optional pulse generator supports System Protection Device shaft speed monitoring. Available from Pro Gear and Transmission – call us to confirm proper fit for your application.
Features
6-bolt clutch-shift engagement
19 transmission input gears – fits Allison 1000/2000 series and most popular manual transmissions
SAE “A”, “B”, and “BB”; DIN 5462 direct mount pump flanges – rotatable for maximum installation clearance
Three remote mount output shaft options in keyed and flange types
Patented Muncie drag brake prevents output shaft rotation when PTO is in the OFF position
Optional pulse generator allows System Protection Device to monitor PTO shaft speed
Tech Specs
- Series: CS6
- Shift Type: 6-Bolt Clutch Shift
- Direct Mount Pump Flanges: SAE “A”, “B”, “BB”; DIN 5462
- Remote Mount Output Shafts: Three options – keyed and flange types
- Transmission Input Gears: 19
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
- Optional Pulse Generator: Compatible with System Protection Device
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
