Description

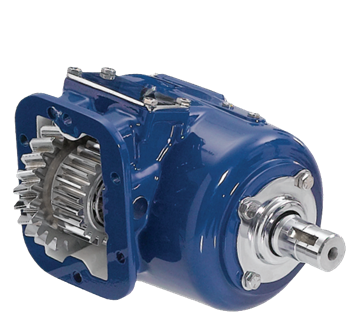

The Muncie CS6 Series Power Take-Off, part number CS6B-A6705-S1RP or CS6BA6705S1RP, is a 6-bolt clutch shift PTO designed to fit most popular automatic and manual transmissions, including the Allison 1000/2000 series. SAE “A”, “B”, and “BB” plus DIN 5462 direct mount pump flanges cover most pump configurations, and the rotatable flanges let you position the pump for clearance. Three remote mount output shafts are available in keyed and flange types for remote pump drive installations. The patented Muncie drag brake holds the output shaft stationary when the PTO is in the OFF position. An optional pulse generator supports a System Protection Device for shaft speed monitoring. Call us to confirm proper fit for your specific transmission and pump setup.
Features
CS6 Series 6-bolt clutch shift Power Take-Off
Fits Allison 1000/2000 series and most popular manual transmissions
SAE “A”, “B”, and “BB”; DIN 5462 direct mount pump flanges
Rotatable direct mount flanges for maximum pump clearance
Patented Muncie drag brake prevents output shaft rotation in OFF mode
Optional pulse generator for System Protection Device shaft speed monitoring
Tech Specs
- Series: CS6
- Shift Type: 6-Bolt Clutch Shift
- Transmission Input Gears: 19 (fits most popular automatic and manual transmissions)
- Direct Mount Pump Flanges: SAE “A”, “B”, “BB”; DIN 5462
- Remote Mount Output Shafts: Three options – keyed and flange types
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
- Pulse Generator: Optional (for System Protection Device shaft speed monitoring)
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
