Description

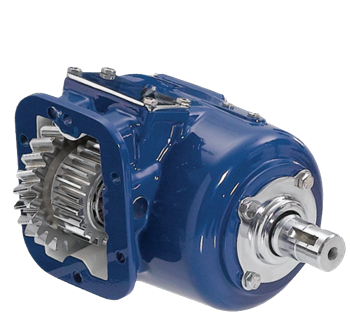

The Muncie CS6 Series Power Take-Off, part number CS6B-A6705-J3BP or CS6BA6705J3BP, is a 6-bolt clutch shift PTO built for direct mount pump applications. It fits most popular automatic and manual transmissions, including Allison 1000/2000 series, using six transmission input gears. Direct mount pump flanges accept SAE “A”, “B”, and “BB” as well as DIN 5462 bolt patterns and are fully rotatable so the pump can be positioned for maximum clearance. Three remote mount output shaft options cover keyed and flange types for added flexibility. Muncie’s patented drag brake prevents output shaft rotation when the PTO is disengaged. An optional pulse generator is available to let a System Protection Device monitor PTO shaft speed. Call us to confirm proper fit for your transmission and pump configuration.
Features
6-bolt clutch shift engagement
Fits Allison 1000/2000 series and most popular manual transmissions via six transmission input gears
SAE “A”, “B”, and “BB” plus DIN 5462 direct mount pump options with rotatable flanges
Three remote mount output shaft types: keyed and flange styles available
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Optional pulse generator supports System Protection Device shaft speed monitoring
Tech Specs
- Shift Type: 6-Bolt Clutch Shift
- Direct Mount Pump Patterns: SAE “A”, SAE “B”, SAE “BB”, DIN 5462
- Remote Mount Output Shafts: Keyed and flange types (3 options)
- Transmission Input Gears: 6
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
- Optional Accessory: Pulse generator for System Protection Device shaft speed monitoring
