Description

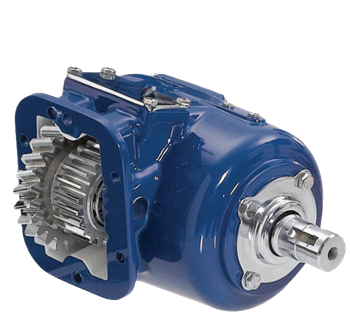

The Muncie CS6B-A6705-J1QP is a CS6 Series power take-off with 6-bolt clutch shift engagement. It accepts 19 transmission input gears, covering most popular automatic and manual transmissions including the Allison 1000/2000 series. Direct mount pump flanges are available in SAE “A”, “B”, and “BB” as well as DIN 5462 configurations, and the flanges rotate to give maximum clearance around the pump. Three remote mount output shaft options – keyed and flange types – add versatility for remote pump drives. Muncie’s patented drag brake prevents shaft rotation when the PTO is in the off position. An optional pulse generator allows a System Protection Device to monitor PTO shaft speed. Part number also referenced as CS6BA6705J1QP. Call us to confirm proper fit for your application.
Features
CS6 Series 6-bolt clutch shift engagement
19 transmission input gears fit most popular automatic and manual transmissions, including Allison 1000/2000 series
SAE “A”, “B”, and “BB”; DIN 5462 direct mount pump flange options with rotatable flanges for pump positioning clearance
Three remote mount output shaft types: keyed and flange configurations for remote pump drives
Patented Muncie drag brake prevents output shaft rotation in the off position
Optional pulse generator supports System Protection Device shaft-speed monitoring
Tech Specs
- Shift Type: Clutch Shift (6-Bolt)
- Transmission Input Gears: 19
- Direct Mount Pump Flanges: SAE “A”, “B”, “BB”; DIN 5462 (rotatable)
- Remote Mount Output Shafts: 3 options – keyed and flange types
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
- Optional Accessory: Pulse generator for System Protection Device shaft-speed monitoring
