Description

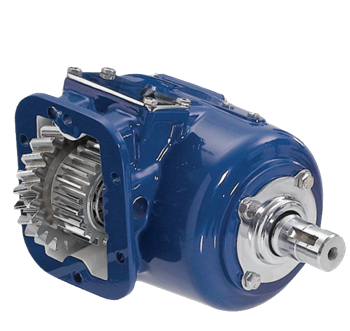

The Muncie CS6B-A6705-E3PP or CS6BA6705E3PP is a CS6 Series power take-off featuring a 6-bolt clutch shift configuration. It accommodates 19 transmission input gear combinations, making it compatible with most popular automatic and manual transmissions, including the Allison 1000/2000 series. Direct mount pump flanges are available in SAE “A”, “B”, and “BB” as well as DIN 5462 patterns, and the flanges rotate to give maximum clearance in tight installations. Three remote mount output shaft options cover both keyed and flange types for flexible pump drive setups. The patented Muncie drag brake prevents output shaft rotation whenever the PTO is in the off position. An optional pulse generator allows a System Protection Device to monitor PTO shaft speed. Call us to confirm proper fit for your application.
Features
CS6 Series PTO, part number CS6B-A6705-E3PP or CS6BA6705E3PP
6-bolt clutch shift activation
19 transmission input gear combinations for broad automatic and manual transmission coverage, including Allison 1000/2000 series
SAE “A”, “B”, and “BB” plus DIN 5462 rotatable direct mount pump flanges
Three remote mount output shaft options: keyed and flange types
Patented Muncie drag brake prevents output shaft rotation in the off position
Optional pulse generator for System Protection Device shaft speed monitoring
Tech Specs
- Height: 11.63 in.
- Width: 13.38 in.
- Length: 15.63 in.
- Activation: 6-Bolt Clutch Shift
- Series: CS6
- Sold as: Each
