Description

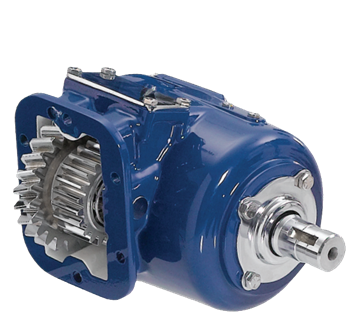

The Muncie CS6B-A6704-S1PP (also listed as CS6BA6704S1PP) is a CS6 series power takeoff built to serve a wide range of truck and vocational applications. It accepts 19 transmission input gear configurations, covering most popular automatic and manual transmissions. Output options include three remote-mount shaft styles in keyed and flange types, plus SAE “A”, “B”, and “BB” and DIN 5462 direct-mount pump flanges. The rotatable direct-mount flanges let you position the pump for maximum clearance in tight installations. Muncie’s patented drag brake prevents output shaft rotation when the PTO is disengaged. An optional pulse generator allows a System Protection Device to monitor PTO shaft speed. Call us to confirm proper fit for your transmission and output configuration.
Features
19 transmission input gear options covering most popular automatic and manual transmissions
Three remote-mount output shaft styles available in keyed and flange types
SAE “A”, “B”, and “BB” plus DIN 5462 direct-mount pump flange compatibility
Rotatable direct-mount flanges for pump positioning and maximum installation clearance
Patented Muncie drag brake prevents output shaft rotation when PTO is in the off position
Optional pulse generator supports System Protection Device shaft speed monitoring
