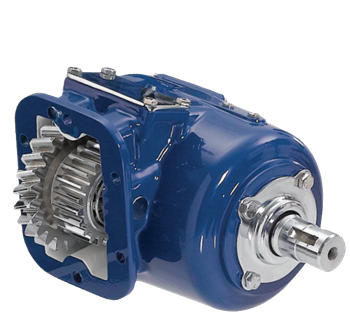

The Muncie CS6 Series Power Take-Off, part number CS6B-A6704-E3PX or CS6BA6704E3PX, is a 6-bolt clutch shift PTO built for both automatic and manual transmission applications, including the Allison 1000/2000 series. Direct mount pump flanges accept SAE “A”, “B”, and “BB” as well as DIN 5462 pump interfaces, and the flanges rotate to position the pump for maximum clearance. Three remote mount output shaft options cover keyed and flange types for versatile pump drive setups. Muncie’s patented drag brake prevents shaft rotation when the PTO is in the off position. An optional pulse generator supports System Protection Device shaft-speed monitoring. Available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
6-bolt clutch shift configuration
Fits Allison 1000/2000 series and many manual transmissions
SAE “A”, “B”, and “BB”; DIN 5462 direct mount pump interfaces
Rotatable direct mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents output shaft rotation when PTO is off
Optional pulse generator for System Protection Device shaft-speed monitoring
