Description

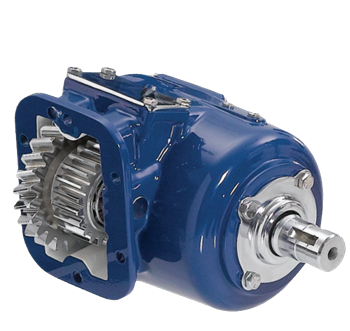

The Muncie CS6 Series power take-off, part number CS6B-A6704-E1RP or CS6BA6704E1RP, is a 6-bolt clutch shift PTO designed to fit most popular automatic and manual transmissions, including the Allison 1000/2000 series. Direct mount pump options cover SAE “A”, “B”, and “BB” flanges as well as DIN 5462, and those flanges are rotatable so you can position the pump for maximum clearance. Three remote mount output shafts are available in keyed and flange types for versatility in remote pump drive setups. The patented Muncie drag brake prevents output shaft rotation when the PTO is in the off position. An optional pulse generator allows a System Protection Device to monitor PTO shaft speed. Call us to confirm proper fit for your specific transmission and application.
Features
6-bolt clutch shift power take-off in the Muncie CS6 Series
Fits most popular automatic and manual transmissions, including Allison 1000/2000 series
Direct mount pump options: SAE “A”, “B”, and “BB” flanges plus DIN 5462
Rotatable direct mount flanges allow pump positioning for maximum clearance
Patented Muncie drag brake prevents output shaft rotation in the off position
Optional pulse generator enables System Protection Device monitoring of PTO shaft speed
Tech Specs
- Shift Type: Clutch Shift
- Mounting: 6-Bolt
- Direct Mount Pump Flanges: SAE “A”, SAE “B”, SAE “BB”, DIN 5462
- Remote Output Shafts: Keyed and flange types available
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
- Optional Pulse Generator: Compatible with System Protection Device for shaft speed monitoring
