Description

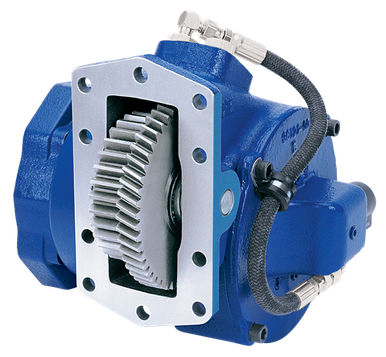

The Muncie CS10-A1005-H1PB or CS10A1005H1PB is a heavy-duty clutch shift power take-off from the CS10 Series, built for demanding hydraulic and auxiliary drive applications. This unit features a 10-bolt mounting configuration and ships as a complete assembly. Three remote mount output shafts are available in keyed and flange types, and the direct mount flanges accept SAE “B”, “BB”, and “C” as well as DIN 5462 pumps. Rotatable direct mount flanges allow pump positioning for maximum clearance in tight installations. Muncie’s patented drag brake prevents output shaft rotation when the PTO is in the off position. Two assembly arrangements let the unit mount shaft-high or shaft-low on either side of the transmission. Standard pressure lubrication is included at no additional cost. Call us to confirm proper fit for your transmission and application.
Features
10-bolt heavy-duty clutch shift configuration
Three remote mount output shaft options in keyed and flange types
SAE “B”, “BB”, and “C”; DIN 5462 direct mount pump compatibility
Rotatable direct mount flanges for maximum pump clearance
Patented Muncie drag brake prevents output shaft rotation in the off position
Two assembly arrangements: shaft-high or shaft-low on either side of the transmission
