Description

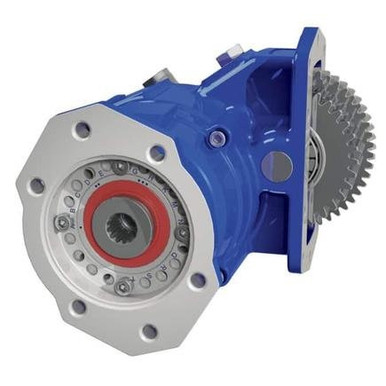

The Muncie A20-A1008-HX1AAPX or A20A1008HX1AAPX is a medium-duty, 10-bolt clutch shift power take-off engineered specifically for Allison 3000 and 4000 Series transmissions. The A20 Series uses a proven clutch pack design with tapered roller bearings to extend service life, and the increased-diameter output shaft adds durability under sustained load. A rotatable pump flange and a shift cover with 360-degree rotation simplify installation and plumbing, while reduced leak paths keep maintenance intervals manageable. The unit accommodates three housing arrangements and accepts the EX Drive shaft extension, making it adaptable across a range of truck body and hydraulic configurations. Extended-length PTO mounting fasteners and increased installation clearance round out a design that cuts time on the floor. Call us to confirm proper fitment for your application.
Features
10-bolt clutch shift design for Allison 3000 and 4000 Series transmissions
Rotatable pump flange and 360-degree rotating shift cover simplify installation and plumbing
Tapered roller bearings for extended PTO service life
Increased output shaft diameter for higher durability under load
Three housing arrangements available; compatible with EX Drive shaft extension
Single intermittent/continuous torque rating across supported speed ratios
Tech Specs
- Mounting: 10-bolt
- Shift type: Clutch shift
- Transmission application: Allison 3000 Series and 4000 Series
- Shift cover rotation: 360 degrees
- Housing arrangements: Three
- EX Drive shaft extension compatibility: Yes
- Speed ratio 5: 74% engine speed (3000 Series), 105% engine speed (4000 Series), 77 HP/kW @ 1,000 RPM intermittent/continuous, 400 lb.ft. (542 Nm) torque rating
- Speed ratio 6: 85% engine speed (3000 Series), 122% engine speed (4000 Series), 77 HP/kW @ 1,000 RPM intermittent/continuous, 400 lb.ft. (542 Nm) torque rating
- Speed ratio 7: 99% engine speed (3000 Series), 141% engine speed (4000 Series), 79 HP/kW @ 1,000 RPM intermittent/continuous, 415 lb.ft. (563 Nm) torque rating
- Speed ratio 8: 114% engine speed (3000 Series), 163% engine speed (4000 Series), 69 HP/kW @ 1,000 RPM intermittent/continuous, 360 lb.ft. (488 Nm) torque rating
- Speed ratio 9: 122% engine speed (3000 Series), 175% engine speed (4000 Series), 65 HP/kW @ 1,000 RPM intermittent/continuous, 340 lb.ft. (461 Nm) torque rating
- Speed ratio 10: 131% engine speed (3000 Series), 187% engine speed (4000 Series), 59 HP/kW @ 1,000 RPM intermittent/continuous, 310 lb.ft. (420 Nm) torque rating
- Speed ratio 11: 151% engine speed (3000 Series), 215% engine speed (4000 Series), 52 HP/kW @ 1,000 RPM intermittent/continuous, 275 lb.ft. (373 Nm) torque rating
- Speed ratio 12: 162% engine speed (3000 Series), 231% engine speed (4000 Series), 50 HP/kW @ 1,000 RPM intermittent/continuous, 265 lb.ft. (359 Nm) torque rating
- Speed ratio 15: 201% engine speed (3000 Series), 287% engine speed (4000 Series), 39 HP/kW @ 1,000 RPM intermittent/continuous, 205 lb.ft. (278 Nm) torque rating
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENTCONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT.(NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
