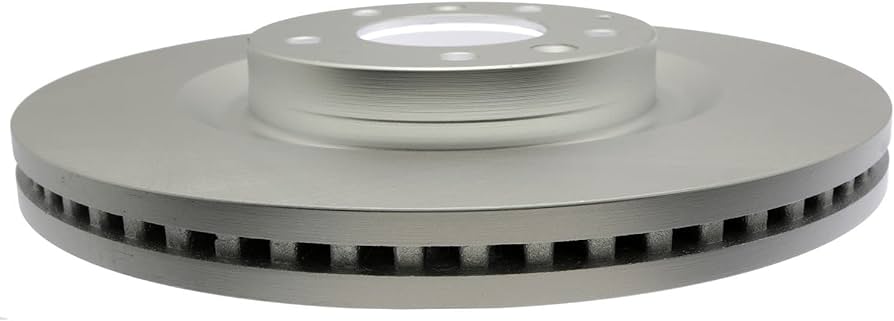

980580FZN

Description

Technical Specifications

Part Number 980580FZNApplication Summary 2015-2007 Mazda CX-9 FrontAAIA Part Type Description Disc Brake RotorBox Height 3.250 INBox Length 13.000 INBox Width 12.750 INBrake Rotor Casting Type VentedBrake Rotor Diameter, Outer 12.587 INBrake Rotor Thickness, Discard 1.024 INBrake Rotor Thickness, Nominal 1.102 INBrake Rotor Type ConventionalCenter Hole Diameter, Maximum 2.840 INCenter Hole Diameter, Minimum 2.835 INCountry of Origin CNHeight, Overall 1.900 INPerformance Level Standard PerformanceProduct Description – Extended Brake Parts Inc Raybestos Element3 Coated Disc Brake RotorProduct Description – Long Raybestos Element3 Coated Brake RotorRotor Braking Surface Machining Type UniformSurface Finish CoatedWeight, Gross 22.100 LBSWheel Bolt Circle Diameter 4.500 INWheel Bolt Hole Diameter, Maximum 0.527 INWheel Bolt Hole Diameter, Minimum 0.507 INWheel Bolt Holes, Primary 5

Vehicle Fitment

This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
