Description
Technical Specifications
9570 36 1992-1988 Ford, F Series Pickup, V-8 7.3 L Diesel, Fan & Alt.

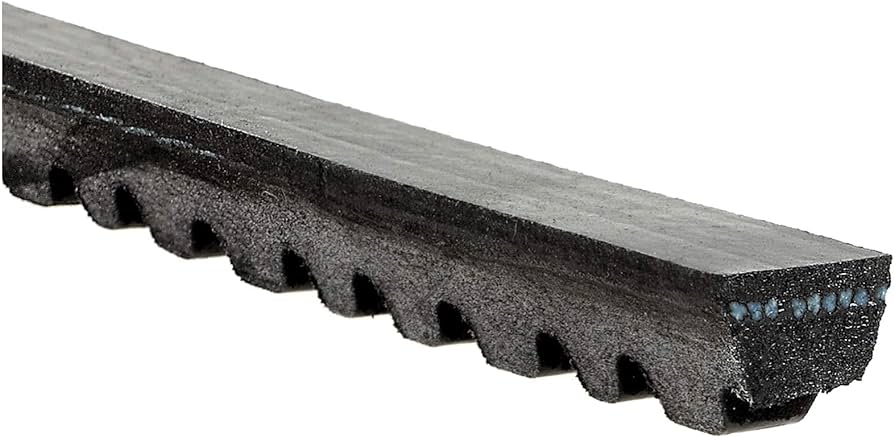

Replacement belt for the most demanding engine drives. Due to thermal forces, this variable notched belt actually tightens on the drive as it gets hot. This results in improved belt performance by reducing tension decay and noise.
- Fiber-loaded rubber stock puts more flexibility along the length of the belt, yet gives the belt greater lateral stability in the pulley.
- Thermally active tensile cords for maintenance-free performance when properly installed and tensioned.
- Form ground to ensure precise top width and sidewall dimensional control for proper fit in pulley as well as a smoother, quieter running belt.
- Meets or exceeds SAE J636c specifications
Gates – Driven By Possibility
57.38 IN
1457 MM V-Belt High Capacity V-Belt (Standard) Belt HC50 .47 IN
12 MM
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| OTHER | 9570 | RBR9570, 8114-1989, 9570GS |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| AMERICAN MOTORS | AMX | 1978-1980 |
| AMERICAN MOTORS | CONCORD | 1978-1983 |
| AMERICAN MOTORS | EAGLE | 1980-1988 |
| AMERICAN MOTORS | GREMLIN | 1975-1978 |
| AMERICAN MOTORS | HORNET | 1975-1977 |
| AMERICAN MOTORS | MATADOR | 1976-1978 |
| AMERICAN MOTORS | SPIRIT | 1979-1983 |
| AUTOCAR | DK | 1987 |
| AUTOCAR | DS | 1987 |
| CADILLAC | CALAIS | 1971-1976 |
| CADILLAC | COMMERCIAL CHASSIS | 1971-1976 |
| CADILLAC | DEVILLE | 1971-1976 |
| CADILLAC | ELDORADO | 1971-1974 |
| CADILLAC | FLEETWOOD | 1971-1976 |
| CHECKER | DELUXE | 1969 |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
