Description

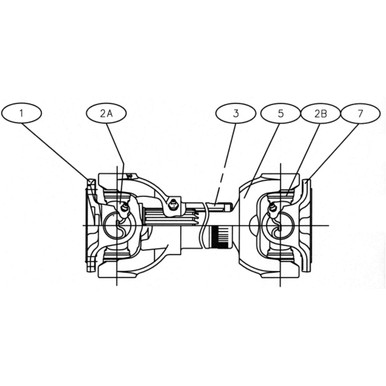

The Dana Spicer 909371-1 or 9093711 is a 1550 series steel driveshaft sold by Pro Gear and Transmission. Collapsed center-of-yoke to center-of-yoke length is 10 in. (254 mm), with a maximum slip of 2.5 in. (63.5 mm) and a mid-slip position of 1.25 in. (31.75 mm). Center-of-yoke to end of spline sleeve measures 11.25 in. (285.75 mm) collapsed. The shaft is not phased, carries a 23-degree joint angle rating, and the flange-end connection is welded. A U-joint is included (Style 2). Not configured as a slip assembly. Call us to confirm proper fit for your application.
Features
1550 series Dana Spicer driveshaft, part number 909371-1 or 9093711
Steel shaft construction
Collapsed center-of-yoke to center-of-yoke: 10 in. (254 mm)
Maximum slip: 2.5 in. (63.5 mm)
23-degree joint angle rating
U-joint included (Style 2); flange end is welded
Not phased (0 degrees); not a slip assembly
Tech Specs
- Series1550
- Shaft MaterialSteel
- Collapsed CL Yoke to CL Yoke10 in. (254 mm)
- Max Slip2.5 in. (63.5 mm)
- Mid Slip1.25 in. (31.75 mm)
- 1/2 Max Slip1.25 in. (31.75 mm)
- CL Yoke to End of Spline Sleeve (Collapsed)11.25 in. (285.75 mm)
- CL Yoke to Flange Face (Collapsed)22 mm
- Flange Connection (Installed)Welded
- U-Joint IncludedYes
- U-Joint Style2
- Joint Angle23 degrees
- PhasedNo
- Slip AssemblyNo
- VMRS Code024000000
