Description

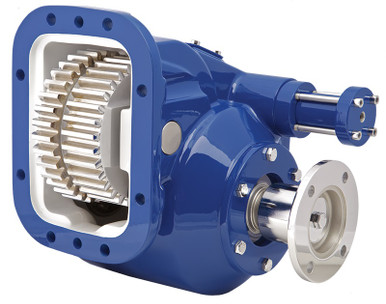

The Muncie 82 Series Power Take-Off, part number 828S-U6815-S1EW or 828SU6815S1EW, is an 8-bolt heavy duty mechanical shift PTO built for high-torque, high-demand applications. The 82 Series is designed to drive high-volume hydraulic pumps and high-CFM blowers, with series torque ratings reaching up to 500 lb-ft intermittent and 350 lb-ft continuous at 1,000 RPM. Housing is cast iron. The unit measures 11.5 in. H x 14.63 in. W x 21.13 in. L, and features a rotatable direct-mount pump flange as standard. Seven direct-mount SAE pump options are available across the series, including SAE “B”, “BB”, “C”, and “D” flanges, as well as DIN 5462 mounts. Call us to confirm proper fit for your transmission and application.
Features
Muncie 82 Series PTO, part number 828S-U6815-S1EW
8-bolt mounting, heavy duty mechanical shift
Cast iron housing construction
Dimensions: 11.5 in. H x 14.63 in. W x 21.13 in. L
Series-rated up to 500 lb-ft intermittent torque at 1,000 RPM
Rotatable direct-mount pump flange standard; multiple SAE and DIN 5462 mount options available
Tech Specs
- Part Number: 828S-U6815-S1EW
- Series: Muncie 82 Series
- Shift Type: Mechanical Shift
- Mounting: 8-Bolt
- Housing Material: Cast Iron
- Height: 11.5 in.
- Width: 14.63 in.
- Length: 21.13 in.
- Sold as: Each
