Description

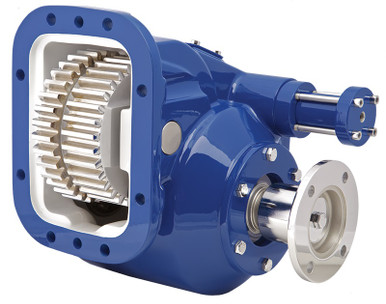

The Muncie 82 Series Power Take-Off, part number 828S-U6813-R4DX or 828SU6813R4DX, is an 8-bolt heavy duty mechanical shift PTO built for high-torque, high-demand applications. The 82 Series uses a cast iron housing and a double-acting air shift mechanism for positive engagement and disengagement. It supports up to seven direct-mount pump options covering S.A.E. “B,” “BB,” “C,” and “D” flanges as well as DIN 5462 mounts, and the rotatable direct-mount flange allows the pump to be positioned for maximum clearance. Overall dimensions are 21.13 in. long x 14.63 in. wide x 11.5 in. tall. Pro Gear and Transmission carries this genuine Muncie unit. Call us to confirm proper fit for your transmission and application.
Features
Muncie 82 Series PTO, part number 828S-U6813-R4DX or 828SU6813R4DX
8-bolt heavy duty mechanical shift configuration
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Rotatable direct-mount pump flange – positions pump for maximum clearance
Seven direct-mount pump options: S.A.E. “B,” “BB,” “C,” “D” and DIN 5462 mounts
Overall dimensions: 21.13 in. L x 14.63 in. W x 11.5 in. H
Tech Specs
- Series: Muncie 82 Series
- Shift Type: Heavy Duty Mechanical Shift
- Mount: 8-Bolt
- Housing: Cast iron
- Direct-Mount Pump Options: 7 (S.A.E. “B,” “BB,” “C,” “D” and DIN 5462)
- Pump Flange: Rotatable, standard
- Length: 21.13 in.
- Width: 14.63 in.
- Height: 11.5 in.
- Part Number: 828S-U6813-R4DX or 828SU6813R4DX
