Description

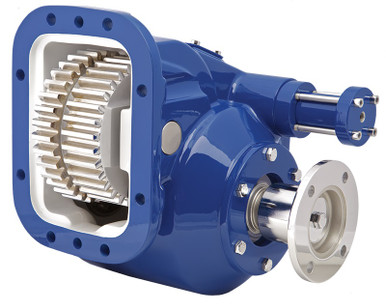

The Muncie 828S-U6813-R3EG or 828SU6813R3EG is a heavy-duty 82 Series power take-off built for high-torque truck applications. This unit features an 8-bolt configuration with mechanical shift engagement and a cast iron housing. Muncie’s 82 Series is rated for up to 500 lb.ft. of intermittent torque and up to 95 HP at 1,000 RPM, making it suited for driving high-volume hydraulic pumps and high-CFM blowers. The rotatable direct-mount pump flange allows positioning for maximum clearance in tight installations. Call us to confirm proper fit for your transmission and application.
Features
Muncie 82 Series PTO, part number 828S-U6813-R3EG or 828SU6813R3EG
8-bolt configuration with heavy duty mechanical shift engagement
Cast iron housing construction
Series-rated up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM
Rotatable direct-mount pump flange for flexible installation positioning
Compatible with SAE “B”, “BB”, “C”, “D”, and DIN 5462 direct mount pump options
Tech Specs
- Series: Muncie 82 Series
- Part Number: 828S-U6813-R3EG or 828SU6813R3EG
- Shift Type: Mechanical Shift
- Bolt Configuration: 8-Bolt
- Housing Material: Cast Iron
- Intermittent Torque Capacity: Up to 500 lb.ft. at 1,000 RPM
- Continuous Torque Capacity: Up to 350 lb.ft.
- Intermittent Power Rating: Up to 95 HP at 1,000 RPM
- Direct Mount Pump Options: SAE “B”, “BB”, “C”, “D”; DIN 5462
- Assembly Arrangements: 2
- Dimensions (H x W x L): 11.5 x 14.63 x 21.13 in.
