Description

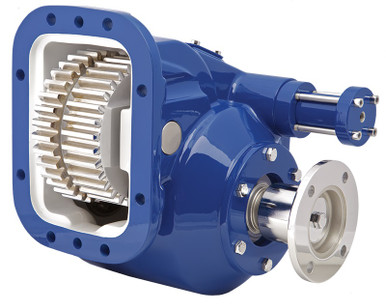

The Muncie 828S-U6813-R1IX or 828SU6813R1IX is an 82 Series power take-off built for heavy duty, high-torque applications. This unit features an 8-bolt heavy duty mechanical shift configuration and a cast iron housing. The 82 Series is rated for up to 500 lb.ft. intermittent torque and up to 95 H.P. at 1,000 RPM at its highest speed ratio, giving it the power to drive high-volume pumps and high-CFM blowers. The direct mount pump flange is rotatable, allowing the pump to be positioned for maximum clearance. Companion flange output options provide versatility for remote pump and mechanical drives. Pro Gear and Transmission carries genuine Muncie parts. Call us to confirm proper fitment for your transmission and application.
Features
Muncie 82 Series heavy duty PTO, part number 828S-U6813-R1IX or 828SU6813R1IX
8-bolt heavy duty mechanical shift
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM (series rating at highest ratio)
Rotatable direct mount pump flange for positioning flexibility
Compatible with SAE “B”, “BB”, “C”, “D” and DIN 5462 direct mount pump options
Tech Specs
- Series: Muncie 82 Series
- Shift Type: Mechanical Shift
- Mount Configuration: 8-Bolt Heavy Duty
- Housing Material: Cast Iron
- Max Intermittent Torque (series): 500 lb.ft. at highest speed ratio
- Max Intermittent Horsepower (series): 95 H.P. at 1,000 RPM
- Direct Mount Pump Options: SAE B, BB, C, D; DIN 5462
- Rotatable Pump Flange: Standard
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
- Alternate Part Number: MU828SU6813R1IX
