Description

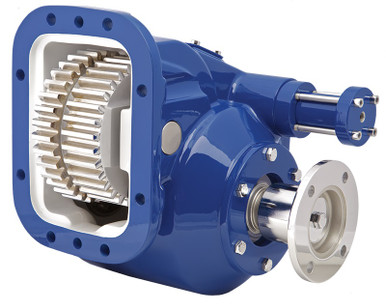

The Muncie 82 Series Power Take-Off, part number 828S-U6812-R1DX or 828SU6812R1DX, is an 8-bolt heavy duty mechanical shift PTO built for high-torque applications. The 82 Series uses a cast iron housing and is rated at up to 500 lb-ft intermittent torque and 95 HP at 1,000 RPM at the top speed ratio, providing the output needed to drive high-volume hydraulic pumps and high-CFM blowers. The unit features a rotatable direct mount pump flange, giving you flexibility to position the pump for maximum clearance in tight installations. Overall dimensions are approximately 21.13 in. long x 14.63 in. wide x 11.5 in. tall. Call us to confirm proper fit for your transmission and application.
Features
Muncie 82 Series PTO, part number 828S-U6812-R1DX or 828SU6812R1DX
8-bolt heavy duty mechanical shift configuration
Cast iron housing construction
Up to 500 lb-ft intermittent torque and 95 HP at 1,000 RPM (top speed ratio)
Rotatable direct mount pump flange for adjustable pump positioning
Overall dimensions: 21.13 in. L x 14.63 in. W x 11.5 in. H
Tech Specs
- Series: Muncie 82 Series
- Part Number: 828S-U6812-R1DX or 828SU6812R1DX
- Shift Type: Mechanical Shift, 8-Bolt Heavy Duty
- Housing Construction: Cast Iron
- Intermittent Torque Capacity (top ratio): 500 lb-ft
- Intermittent Horsepower (top ratio at 1,000 RPM): 95 HP
- Length: 21.13 in.
- Width: 14.63 in.
- Height: 11.5 in.
