Description

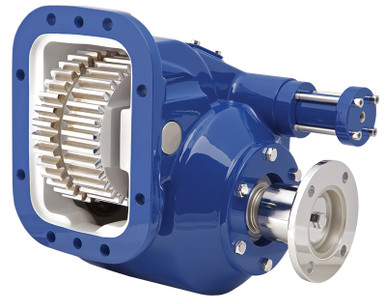

The Muncie 82 Series Power Take-Off, part number 828S-U6810-T4IX or 828SU6810T4IX, is an 8-bolt heavy duty mechanical shift PTO built for high-torque, high-volume applications. The 82 Series is rated up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM in its highest-capacity ratio, with a cast iron housing. The unit measures 21.13 in. long x 14.63 in. wide x 11.5 in. tall. Seven direct-mount pump flange options include SAE “B,” “BB,” “C,” and “D” as well as DIN 5462 mounts, and the rotatable direct-mount flange allows the pump to be positioned for maximum clearance. Call us to confirm proper fit for your application.
Features
82 Series PTO with 8-bolt heavy duty mechanical shift
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM (series rating, highest-capacity ratio)
Seven direct-mount pump flange options: SAE B, BB, C, D, and DIN 5462
Rotatable direct-mount flange for maximum pump clearance
Dimensions: 21.13 in. L x 14.63 in. W x 11.5 in. H
Tech Specs
- Series: Muncie 82 Series
- Shift Type: Mechanical Shift
- Mount Configuration: 8-Bolt Heavy Duty
- Housing Material: Cast Iron
- Series Torque Capacity (Intermittent): Up to 500 lb.ft. at 1,000 RPM
- Series Horsepower (Intermittent): Up to 95 HP at 1,000 RPM
- Direct-Mount Pump Flange Options: SAE B, BB, C, D; DIN 5462
- Rotatable Pump Flange: Standard
- Length: 21.13 in.
- Width: 14.63 in.
- Height: 11.5 in.
- Alternate Part Number: MU828SU6810T4IX
