Description

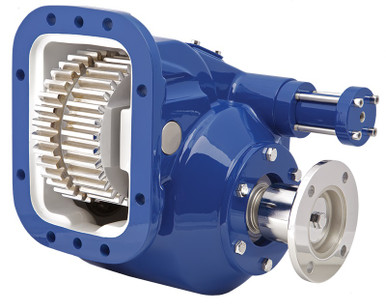

The Muncie 82 Series Power Take-Off, part number 828S-U6809-R3PX or 828SU6809R3PX, is an 8-bolt heavy duty mechanical shift PTO built for high-torque, high-demand applications. The 82 Series is rated up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM, making it suitable for driving high-volume hydraulic pumps and high-CFM blowers. The cast iron housing measures 11.5 in. x 14.63 in. x 21.13 in. (H x W x L). A double-acting air shift provides positive engagement and disengagement, and the rotatable direct-mount pump flange allows positioning for maximum clearance. Call us to confirm proper fit for your specific transmission and application.
Features
Muncie 82 Series PTO, part number 828S-U6809-R3PX or 828SU6809R3PX
8-bolt heavy duty mechanical shift configuration
Cast iron housing construction
Rated up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM (82 Series rating)
Double-acting air shift for positive engagement and disengagement
Rotatable direct-mount pump flange for flexible pump positioning
Tech Specs
- Series: Muncie 82 Series
- Part Number: 828S-U6809-R3PX or 828SU6809R3PX
- Shift Type: Heavy Duty Mechanical Shift
- Mount: 8-Bolt
- Housing Material: Cast Iron
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
- Intermittent Torque Capacity (82 Series): up to 500 lb.ft.
- Intermittent HP (82 Series): up to 95 HP at 1,000 RPM
- Output Shaft Options (82 Series): 9
- Assembly Arrangements (82 Series): 2
