Description

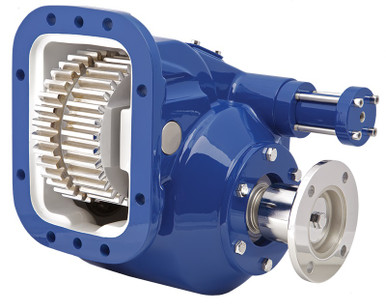

The Muncie 828S-U6808-R3DX (also referenced as 828SU6808R3DX) is an 82 Series Power Take-Off built for high-torque, heavy-duty applications. It features an 8-bolt heavy-duty mechanical shift and a cast iron housing. The 82 Series is rated up to 500 lb-ft intermittent torque and up to 95 HP at 1,000 RPM at the top speed ratio, giving it the output needed to drive high-volume pumps and high-CFM blowers. The direct mount pump flange is rotatable, letting you position the pump for maximum clearance in tight installations. Call us to confirm proper fit for your specific transmission and application.
Features
82 Series Power Take-Off with 8-bolt heavy-duty mechanical shift
Cast iron housing construction
Up to 500 lb-ft intermittent torque and 95 HP at 1,000 RPM (top speed ratio)
Rotatable direct mount pump flange for maximum installation clearance
Seven direct mount pump options including SAE B, BB, C, D and DIN 5462 mounts
Two companion flange output types for remote pump and mechanical drives
Tech Specs
- Series: Muncie 82 Series
- Shift Type: 8-Bolt Heavy Duty Mechanical Shift
- Housing: Cast Iron
- Intermittent Torque Capacity (Series Max): 500 lb-ft at top speed ratio
- Intermittent Horsepower (Series Max): 95 HP at 1,000 RPM
- Rotatable Pump Flange: Standard
- Direct Mount Pump Options: 7 (SAE B, BB, C, D; DIN 5462)
- Companion Flange Output Types: 2
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
