Description

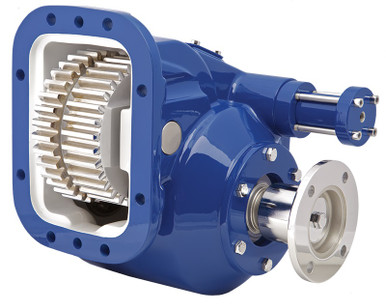

The Muncie 82 Series Power Take-Off, part number 828S-U6805-S1CX or 828SU6805S1CX, is an 8-bolt heavy duty mechanical shift PTO built for high-torque applications. The 82 Series is rated up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM, making it suitable for driving high-volume pumps and high-CFM blowers. The cast iron housing measures approximately 11.5 in. H x 14.63 in. W x 21.13 in. L. A rotatable direct mount flange is standard, offering flexibility in pump positioning for clearance. Seven direct mount pump options are available across SAE “B”, “BB”, “C”, “D”, and DIN 5462 mount configurations. Call us to confirm proper fit and shift configuration for your application.
Features
Muncie 82 Series PTO, part number 828S-U6805-S1CX or 828SU6805S1CX
8-bolt heavy duty mechanical shift configuration
Cast iron housing construction
Rated up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM
Rotatable direct mount pump flange standard for positioning flexibility
Compatible with SAE “B”, “BB”, “C”, “D”, and DIN 5462 direct mount pump options
Tech Specs
- Series: Muncie 82 Series
- Shift Type: Mechanical Shift
- Bolt Pattern: 8-Bolt
- Housing Material: Cast Iron
- Intermittent Torque Rating: 500 lb.ft. at 1,000 RPM
- Intermittent Horsepower Rating: 95 H.P. at 1,000 RPM
- Direct Mount Pump Options: 7 (SAE “B”, “BB”, “C”, “D”; DIN 5462)
- Rotatable Pump Flange: Standard
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
