Description

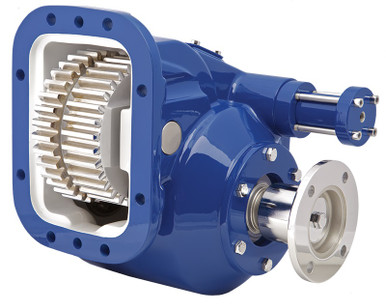

The Muncie 828S-M6519-T3IX or 828SM6519T3IX is an 82 Series power take-off built for high-torque, heavy duty applications. This unit features an 8-bolt mounting configuration and heavy duty mechanical shift engagement. The 82 Series is constructed with a cast iron housing and is rated up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM at its highest ratio, giving it the output needed to drive high-volume pumps and high-CFM blowers. Overall dimensions are 11.5 in. H x 14.63 in. W x 21.13 in. L. Pro Gear and Transmission carries genuine Muncie PTOs – call us to confirm proper fit for your transmission and application.
Features
Muncie 82 Series PTO, part number 828S-M6519-T3IX or 828SM6519T3IX
8-bolt heavy duty mechanical shift engagement
Cast iron housing construction
Rated up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM (series rating at top ratio)
Dimensions: 11.5 in. H x 14.63 in. W x 21.13 in. L
Rotatable direct-mount pump flange standard; seven direct-mount pump options including SAE B, BB, C, D and DIN 5462
Tech Specs
- Series: Muncie 82 Series
- Part Number: 828S-M6519-T3IX or 828SM6519T3IX
- Shift Type: Mechanical Shift
- Mount: 8-Bolt Heavy Duty
- Housing: Cast Iron
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
- Series Torque Capacity (Intermittent): Up to 500 lb.ft. at top speed ratio
- Series HP Rating (Intermittent): Up to 95 HP at 1,000 RPM at top speed ratio
- Rotatable Pump Flange: Standard
- Direct-Mount Pump Options: SAE B, BB, C, D; DIN 5462
