Description

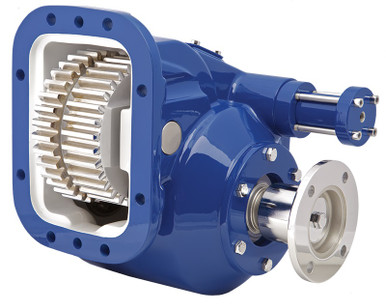

The Muncie 828S-M6513-T3PX (also referenced as 828SM6513T3PX) is an 82 Series Power Take-Off featuring an 8-bolt heavy duty mechanical shift configuration. The 82 Series is built around a cast iron housing and supports up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM at its highest-ratio setting, making it suited for high-volume pump and high-CFM blower applications. The series offers rotatable direct-mount pump flanges and multiple SAE and DIN output mount options, giving installers flexibility in pump positioning and clearance. Overall dimensions are 11.5 in. H x 14.63 in. W x 21.13 in. L. Call us to confirm proper fit and configuration for your transmission and application.
Features
82 Series Power Take-Off with 8-bolt heavy duty mechanical shift
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM (series rating at highest speed ratio)
Rotatable direct-mount pump flange for flexible pump positioning
Compatible with SAE “B”, “BB”, “C”, “D” and DIN 5462 direct-mount pump options
Overall dimensions: 11.5 in. H x 14.63 in. W x 21.13 in. L
Tech Specs
- Series: Muncie 82 Series
- Shift Type: Heavy Duty Mechanical Shift
- Bolt Pattern: 8-Bolt
- Housing Material: Cast Iron
- Intermittent Torque Capacity (series): Up to 500 lb.ft.
- Intermittent HP (series): Up to 95 HP at 1,000 RPM
- Pump Mount Options: SAE B, BB, C, D; DIN 5462
- Height: 11.5 in.
- Width: 14.63 in.
- Length: 21.13 in.
