Description

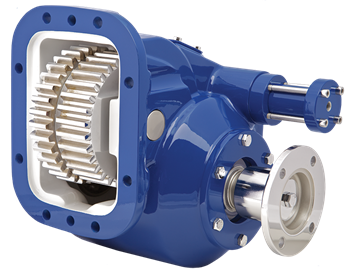

The Muncie 82 Series Power Take-Off, part number 828S-M6510-Q1EX or 828SM6510Q1EX, is built for heavy-duty applications demanding high torque output. The 82 Series reaches up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM at its top speed ratio, making it a capable driver for high-volume hydraulic pumps and high-CFM blowers. Shift engagement is handled by a double-acting air shift for positive in and out actuation. The cast iron housing supports seven direct-mount pump options covering S.A.E. “B,” “BB,” “C,” and “D” flanges plus DIN 5462 mounts, with rotatable direct-mount flanges that let you position the pump for maximum clearance. Two companion flange output types cover remote pump and mechanical drive setups. Call us to confirm proper fit for your transmission and application.
Features
Double-acting air shift for positive engagement and disengagement
Up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM (speed ratio 05)
Cast iron housing construction
Seven direct-mount pump flange options: S.A.E. “B,” “BB,” “C,” “D” and DIN 5462
Rotatable direct-mount flanges for pump positioning and clearance
Two companion flange output types for remote pump and mechanical drives
Tech Specs
- Housing construction: Cast iron
- Shift type: Double-acting air shift
- Speed ratios available: 8
- Output shaft options: 9
- Assembly arrangements: 2
- Direct-mount pump flange options: 7 (S.A.E. “B,” “BB,” “C,” “D”; DIN 5462)
- Rotatable pump flange: Standard
- Series torque and horsepower ratings by speed ratio:
- Speed Ratio 05 – 95 HP / 500 lb.ft. intermittent / 350 lb.ft. continuous (71 kW / 678 Nm / 475 Nm)
- Speed Ratio 06 – 85 HP / 450 lb.ft. intermittent / 315 lb.ft. continuous (71 kW / 610 Nm / 427 Nm)
- Speed Ratio 08 – 85 HP / 450 lb.ft. intermittent / 315 lb.ft. continuous (63 kW / 610 Nm / 427 Nm)
- Speed Ratio 09 – 78 HP / 410 lb.ft. intermittent / 287 lb.ft. continuous (58 kW / 556 Nm / 389 Nm)
- Speed Ratio 10 – 78 HP / 410 lb.ft. intermittent / 287 lb.ft. continuous (58 kW / 556 Nm / 389 Nm)
- Speed Ratio 12 – 71 HP / 375 lb.ft. intermittent / 263 lb.ft. continuous (53 kW / 508 Nm / 356 Nm)
- Speed Ratio 13 – 71 HP / 375 lb.ft. intermittent / 263 lb.ft. continuous (53 kW / 508 Nm / 356 Nm)
- Speed Ratio 15 – 67 HP / 350 lb.ft. intermittent / 245 lb.ft. continuous (50 kW / 475 Nm / 332 Nm)
- Speed Ratio 19 – 57 HP / 300 lb.ft. intermittent / 210 lb.ft. continuous (43 kW / 407 Nm / 285 Nm)
