Description

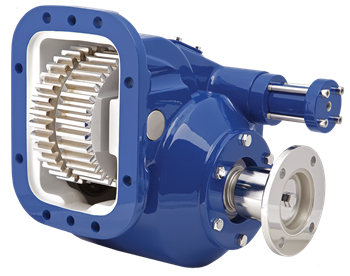

The Muncie 82 Series Power Take-Off, part number 828B-U6815-S3EX or 828BU6815S3EX, is a heavy-duty PTO built for high-torque hydraulic and mechanical drive applications. It uses a double-acting air shift for positive engagement and disengagement, and rides in a cast iron housing. The series supports eight speed ratios and nine output shaft options, with two assembly arrangements. Peak intermittent capacity reaches 500 lb.ft. of torque and 95 HP at 1,000 RPM at the closest speed ratio, making it suited for high-volume hydraulic pumps and high-CFM blowers. Seven direct-mount pump flange options cover S.A.E. “B,” “BB,” “C,” and “D” patterns plus DIN 5462 mounts, and the direct-mount flanges are rotatable for clearance. Call us to confirm proper fit for your transmission and application.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM (speed ratio 05)
Eight available speed ratios; nine output shaft options
Seven direct-mount pump flange options: S.A.E. B, BB, C, D and DIN 5462
Rotatable direct-mount flanges for pump positioning and clearance
Tech Specs
- Housing: Cast iron
- Shift type: Double-acting air shift
- Speed ratios available: 8
- Output shaft options: 9
- Assembly arrangements: 2
- Direct-mount pump flange options: 7 (S.A.E. B, BB, C, D; DIN 5462)
- Rotatable pump flange: Standard
- Peak intermittent torque: 500 lb.ft. (678 NM) at speed ratio 05
- Peak continuous torque: 350 lb.ft. (475 NM) at speed ratio 05
- Peak intermittent HP: 95 HP (71 kW) at 1,000 RPM at speed ratio 05
- Overall dimensions (H x W x L): 11.5 x 14.63 x 21.13 in.
