Description

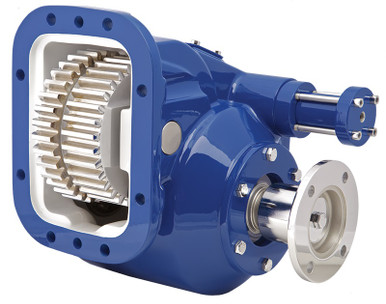

The Muncie 82 Series Power Take-Off, part number 828B-U6812-R1EG or 828BU6812R1EG, is built for high-torque, heavy-duty applications. Its cast iron housing encloses a double-acting air shift mechanism that ensures positive engagement and disengagement under load. The 82 Series supports up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM, making it a practical choice for high-volume hydraulic pumps and high-CFM blowers. Seven direct-mount pump options cover SAE “B,” “BB,” “C,” and “D” flanges as well as DIN 5462 mounts, and rotatable direct-mount flanges let you position the pump for maximum clearance in tight installations. Eight speed ratios and nine output shaft options give you broad flexibility across applications. Overall dimensions are 11.5 in. x 14.63 in. x 21.13 in. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Double-acting air shift for positive engagement and disengagement
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM
Seven direct-mount pump options: SAE “B,” “BB,” “C,” “D” and DIN 5462 mounts
Rotatable direct-mount flanges for maximum pump clearance
Eight available speed ratios and nine output shaft options
Cast iron housing; overall dimensions 11.5 in. x 14.63 in. x 21.13 in.
Tech Specs
- Speed Ratios: 8
- Output Shaft Options: 9
- Assembly Arrangements: 2
- Direct-Mount Pump Options: 7 (SAE “B,” “BB,” “C,” “D” and DIN 5462)
- Rotatable Pump Flange: Standard
- Housing Construction: Cast Iron
- Intermittent Torque Capacity: 500 lb.ft. at 1,000 RPM
- Intermittent Horsepower: 95 H.P. at 1,000 RPM
- Shift Type: Double-Acting Air Shift
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
- Cross-Reference: MU828BU6812R1EG
