Description

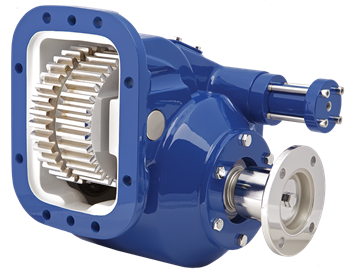

The Muncie 82 Series Power Take-Off, part number 828B-U6809-L1AX or 828BU6809L1AX, is built for heavy-duty, high-torque applications demanding consistent output. The cast iron housing pairs with a double-acting air shift for positive engagement and disengagement under load. At speed ratio 05, the 82 Series reaches 95 H.P. and 500 lb-ft intermittent torque at 1,000 RPM, with 350 lb-ft continuous, making it a fit for high-volume hydraulic pumps and high-CFM blowers. Seven direct-mount pump options cover S.A.E. “B,” “BB,” “C,” and “D” flanges plus DIN 5462 mounts, and the rotatable direct-mount flange lets you position the pump for maximum clearance. Pro Gear and Transmission can help you confirm the right configuration for your application.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb-ft intermittent torque and 95 H.P. at 1,000 RPM (speed ratio 05)
Seven direct-mount pump options: S.A.E. “B,” “BB,” “C,” “D,” and DIN 5462 mounts
Two companion flange output types for remote pump and mechanical drives
Rotatable direct-mount flanges for maximum pump clearance positioning
Tech Specs
- Housing: Cast iron
- Shift type: Double-acting air shift
- Speed ratios available: 8
- Output shaft options: 9
- Assembly arrangements: 2
- Direct-mount pump options: 7 (S.A.E. “B,” “BB,” “C,” “D;” and DIN 5462)
- Rotatable pump flange: Standard
- Intermittent torque (ratio 05): 500 lb-ft (678 NM)
- Continuous torque (ratio 05): 350 lb-ft (475 NM)
- Intermittent HP at 1,000 RPM (ratio 05): 95 H.P. (71 kW)
