Description

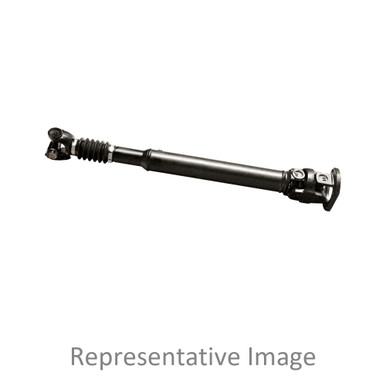

Dana Spicer driveshaft 810546-2215 or 8105462215 is a 1710 series welded steel driveshaft built for heavy-duty driveline applications. The steel tube measures 4.09 x .180 inches (103.9 x 4.57 mm) with a tube length of 22.4688 inches (570.7063 mm). Collapsed centerline yoke-to-yoke length is 38.5002 inches (977.91 mm); installed centerline yoke-to-yoke measures 41.1262 inches (1044.61 mm). Maximum slip is 5.25 inches (133.4 mm) and mid-slip is 2.626 inches (66.7 mm). The assembly includes 2 universal joints, is non-phased, and carries a 30-degree joint angle rating. A genuine Dana Spicer part sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Dana Spicer 1710 series driveshaft
Welded steel tube: 4.09 x .180 in. (103.9 x 4.57 mm)
Tube length: 22.4688 in. (570.7063 mm)
Collapsed CL-to-CL: 38.5002 in. | Installed CL-to-CL: 41.1262 in.
Max slip: 5.25 in. (133.4 mm); Mid slip: 2.626 in. (66.7 mm)
2 universal joints included; non-phased; 30-degree joint angle
Tech Specs
- Series1710
- Shaft MaterialSteel
- Tube Size (IN)4.09 x .180 in.
- Tube Size (MM)103.9 x 4.57 mm
- Tube Length (IN)22.4688 in.
- Tube Length (MM)570.7063 mm
- Max Slip (IN)5.2500 in.
- Max Slip (MM)133.4000 mm
- Mid Slip (IN)2.6260 in.
- Mid Slip (MM)66.7000 mm
- CL Yoke To CL Yoke (IN) – Collapsed38.5002 in.
- CL Yoke To CL Yoke (MM) – Collapsed977.9100 mm
- CL Yoke To CL Yoke (IN) – Installed41.1262 in.
- CL Yoke To CL Yoke (MM) – Installed1044.6100 mm
- Joint Angle30 degrees
- PhasedNo
- Universal Joints IncludedYes
- Number of Universal Joints2
- Welded/Unwelded AssemblyWelded
- VMRS Code024000000
