Description

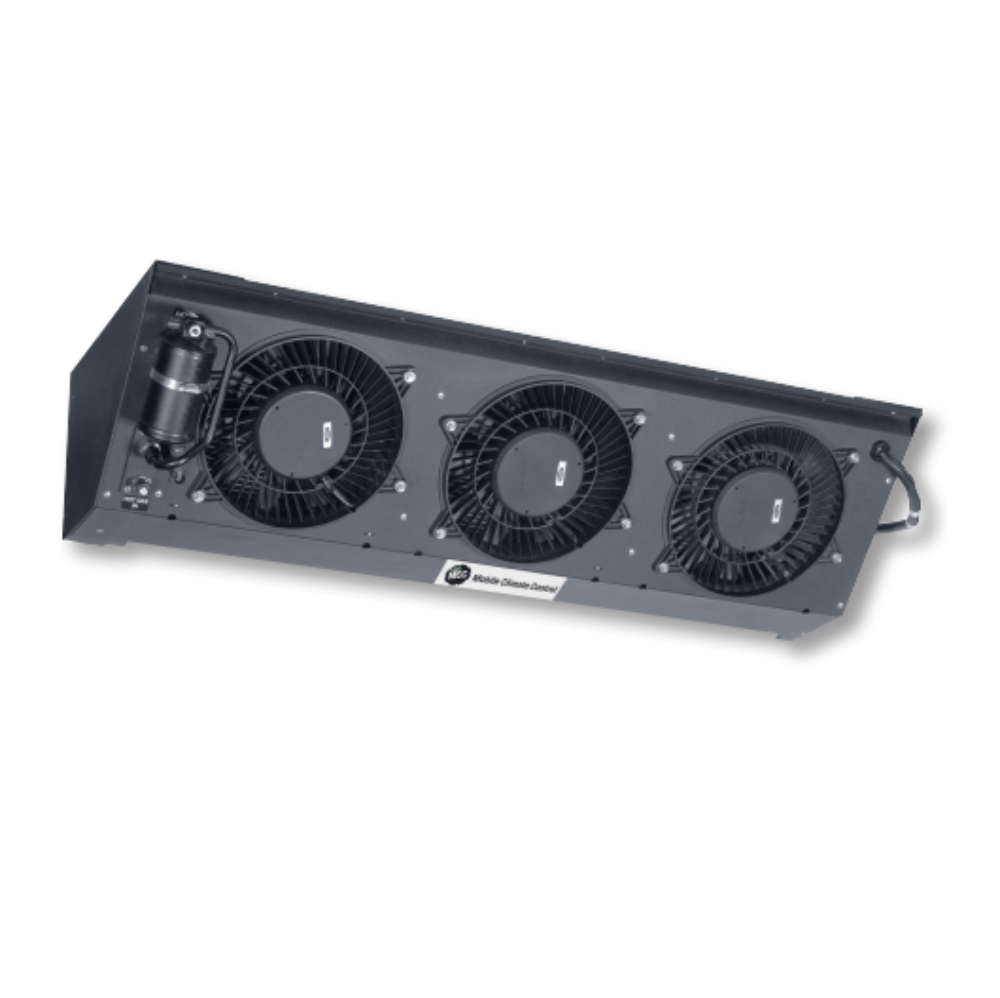

: CM-3 Condenser Assembly
Condition: New
Brand: Carrier®
Part Number: 77-00274-11
Type: Condenser
Weight: 60 lbs
Specifications:
Capacity: 80000 Btu/hr (23.44 kW) IMACA
Air flow: 1350 CFM (2294 m3/hr)
Condenser coil: Advanced technology Micro Channel Heat Exchanger (MCHX)
Condenser fans: Unitized, low-profile, axial-flow vector fans balanced for quiet, vibration-free operation with finger guard
Fan motors: Totally enclosed, pancake-style, permanent-magnet type with extended-life, permanently lubricated bearings
Max amperage requirement: 21 amps @ 13.5 VDC; 11.5 amps @ 27.0 VDC
Safety controls: High refrigerant pressure cut-out 400 psi (28 bar); cut-in 300 psi (21 bar)
Receiver filter dryer: 16 in3 (262 cm3), ½” [8] Male Insert O-Ring (MIOR)
Features:
– Micro channel all aluminum coil design for unmatched heat transfer
– Zink coated for added durability and corrosion protection
– Rugged coated steel construction
– Integrated high pressure safety switch as standard equipment
– Unitized motor/fan package increases service access and decreases service time
– Winter protection package
– Skirt mount or component mount air inlet grill
– 12V or 24V operation
– Stackable kit available
– Incorporated single piece receiver/dryer and system moisture indicator reduced possible leak joints
– Plug-n-Play connectors on unit and fan motor provide for ease of installation and motor service
