Description

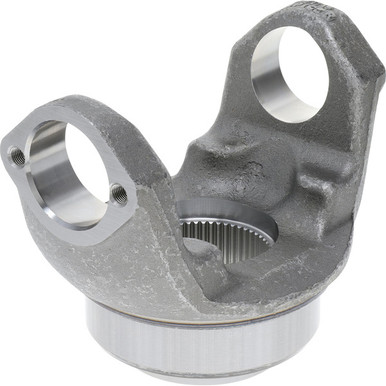

Dana Spicer end yoke 6.5-4-4981 or 6544981 is a 1810 series, automatic transmission yoke with a splined hole bore and involute spline form. It carries a 55-spline count with a 2.795 in. major diameter and a hub diameter of 4.725 in. The outside yoke dimension (E) measures 7.547 in., the bearing cap dimension (D) is 1.938 in., and the centerline-to-end-hub distance (S) is 5.000 in. Length through the hole (Q) is 2.047 in. The counterbore is 2.856 in. diameter by 0.146 in. deep. Yoke style is BP; no slinger or plug is included. Material is steel, and the joint angle is rated at 24 degrees. Cross-reference note: Allison No. 29540175. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
1810 series driveline end yoke, automatic transmission application
55-spline involute splined hole, 2.795 in. major diameter, 4.725 in. hub diameter
BP yoke style; outside yoke dimension (E) 7.547 in.
Bearing cap dimension (D) 1.938 in.; centerline to end hub (S) 5.000 in.
Joint angle rated at 24 degrees
Steel construction; no slinger or plug included
Tech Specs
- Series1810
- Spline Count55
- Yoke StyleBP
- Hub Diameter (R)4.725 in.
- C/L To End Hub (S)5.000 in.
- TypeSplined Hole
- Outside Yoke Dimension (E)7.547 in.
- Yoke Bearing Dimension (D)1.938 in.
- Major Diameter2.795 in.
- Involute SplineYes
- Length Thru Hole (Q)2.047 in.
- C-Bore Depth0.146 in.
- C-Bore Diameter2.856 in.
- Includes Slinger/PlugNo
- MaterialSteel
- Joint Angle 124 degrees
- VMRS026001083
Additional Information
Cross-Reference: Allison No. 29540175
