5505543 Eaton Fuller Universal Joint Yoke 1710 H R

Description

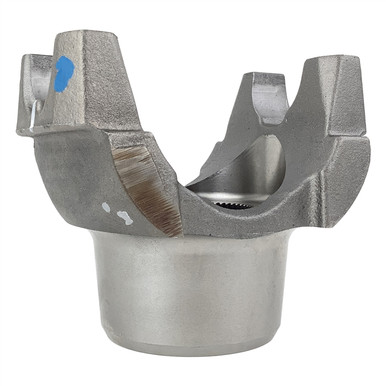

Eaton Fuller universal joint yoke 5505543 is a 1710 series main shaft end yoke in the HR style, machined for a 54-tooth involute splined bore. It mounts on the transmission output shaft to connect the driveline, with a 2.794 in. major diameter and a splined-hole design without slinger or plug. Steel construction, with a 6.190 in. outside yoke dimension, 1.938 in. bearing dimension, 5.625 in. centerline-to-end-hub, and a 2.750 in. length through the hole. It carries a 30 degree joint angle. Cross-references include HF5505543 and 12472031. Call us to confirm proper fit for your application.

Features

1710 series HR-style universal joint end yoke
54-tooth involute splined bore, major diameter 2.794 in.
Outside yoke dimension 6.190 in., bearing dimension 1.938 in.
Centerline to end hub 5.625 in., length through hole 2.750 in.
Splined hole type, no slinger or plug; steel construction
Cross-references HF5505543 and 12472031

Tech Specs

• Series: 1710
• Yoke Style: HR
• Spline Count: 54
• Spline Type: Involute
• Bore Type: Splined Hole
• Major Diameter: 2.794 in.
• Outside Yoke Dimension (E): 6.190 in.
• Yoke Bearing Dimension (D): 1.938 in.
• Centerline to End Hub (S): 5.625 in.
• Length Through Hole (Q): 2.750 in.
• Joint Angle: 30 degrees
• Includes Slinger/Plug: No
• Material: Steel
• VMRS: 026001083
• Cross Reference: HF5505543, 12472031

Used in 76 Eaton Fuller models
