Description

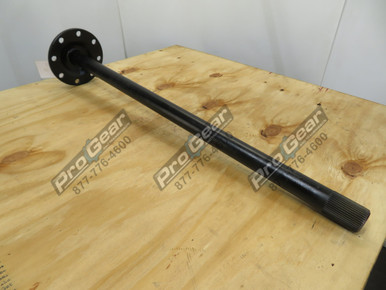

The Meritor drive axle shaft, part number 3202Q8935, is a genuine OEM Meritor component for heavy-duty drive axle applications. It features a 39-spline configuration with a 2.00 in. spline diameter and a 2.36 in. spline length. The shaft body measures 1.94 in. in diameter and runs 40.15 in. in total length. The bolt flange has an 8.38 in. diameter with a 7.00 in. bolt circle, eight taper-type holes sized at 0.73 in. This shaft does not include lube holes or puller holes. Call us to confirm proper fit for your axle configuration.Interchanges:
- 3093039
- 3202Q8935RI
- 82353202Q8935
- AS1181
- ATI3202Q8935
- E9HZ4234G
- HR3202Q8935
- TDA3202Q8935
