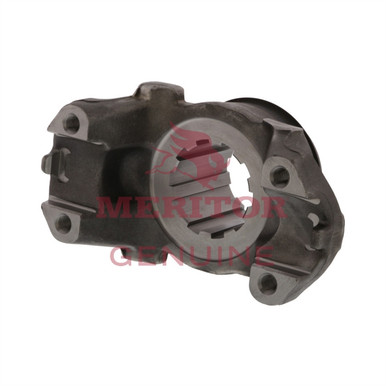

The Meritor RPL25 end yoke 25WYS44-2A or 25WYS442A is a Permalube RPL25 series driveline yoke for heavy-duty truck driveshaft assemblies. It has a 10-spline bore with a 2.750 in. spline diameter and 3.00 in. spline length, seating on a 3.75 in. hub. The joint is rated for a 29 degree operating angle and uses a 2.06 in. bearing cap. Face-to-end length is 5.09 in. and the dimension across the nibs is 8.38 in. Pair it with U-joint kit CP25RPLS, deflector DEFR62-1, and service kit RPL 25 20. Call us to confirm proper fit for your application.Interchanges:
- 20504502
- 2501146C91
- 25WYS442ARI
- 35-25WYS442A
- 823525WYS442A
- 963125WYS442A
- ATI25WYS442A
- HR25WYS442A
- S18421
- TDA25WYS442A
