Description

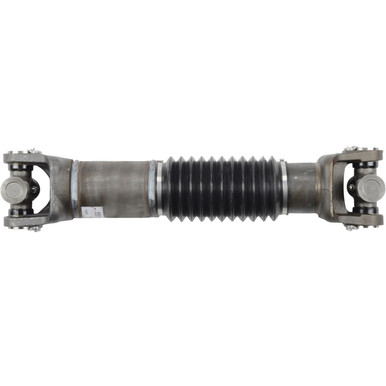

The Dana Spicer 250DS85001-1400M or 250DS850011400M is a welded steel drive shaft in the SPL250 Lite series. The steel tube measures 4.67 in. Diameter x 0.205 in. Wall (118.6 x 5.20 mm) with a tube length of 55.12 in. (1,400 mm). Collapsed center-line-to-center-line yoke length is 63.31 in. (1,608 mm); center-line yoke to end of yoke shaft collapsed is 77.01 in. (1,956 mm). Maximum slip is 4.33 in. (110 mm). The shaft is non-phased, carries a 25-degree joint angle rating, and ships with two universal joints already included. Per Dana Spicer Technical Bulletin JOI-TEC-083, SPL Lite shafts must be replaced as a complete set, if either the main drive shaft or coupling shaft requires replacement, both shafts in the system must be ordered together. A genuine Dana Spicer part sold by Pro Gear and Transmission. Call us to confirm the complete set needed for your application.
Features
SPL250 Lite series welded steel drive shaft
Tube size: 4.67 in. diameter x 0.205 in. wall (118.6 x 5.20 mm)
Tube length: 55.12 in. (1,400 mm)
Collapsed CL-to-CL yoke length: 63.31 in. (1,608 mm)
Maximum slip: 4.33 in. (110 mm), 25-degree joint angle
Includes 2 universal joints; non-phased; must be replaced as a complete SPL Lite set per Dana Spicer bulletin JOI-TEC-083
Tech Specs
- Series: SPL250 Lite
- Shaft Material: Steel
- Assembly: Welded
- Tube Size: 4.67 in. diameter x 0.205 in. wall (118.6 x 5.20 mm)
- Tube Length: 55.1181 in. (1,400 mm)
- Max Slip: 4.3307 in. (110 mm)
- Collapsed CL Yoke to CL Yoke: 63.3071 in. (1,608 mm)
- Collapsed CL Yoke to End of Yoke Shaft: 77.0079 in. (1,956 mm)
- Joint Angle: 25 degrees
- Phased: No
- Universal Joints Included: Yes, 2 included
- VMRS: 024000000
Additional Information
IMPORTANT, SPL LITE SHAFT REPLACEMENT POLICY: If either the main drive shaft or the coupling shaft in the system requires replacement, both shafts must be ordered as a complete set. Ordering only one shaft is not sufficient. Refer to Dana Spicer Technical Bulletin JOI-TEC-083 for complete instructions. Contact Pro Gear and Transmission to ensure you order the correct complete set for your application.
