Description
Technical Specifications
24013 Various GM (08-17), Hyundai, Kia(10-19) Cabin filter location 3 – Behind glove box (glove box must be removed) 1. Disconnect dampers from inside of the glove compartment – there are two – one on each side towards the back near the top (unscrew them to remove)2. Disconnect glove compartment lift on the right side then lower or remove the glove compartment.3. Remove filter cover by pushing the knob4. Remove cabin air filter5. Install new cabin air filter – Ensure direction arrow ispointing towards compartment when installing.6. Install filter cover.7. Connect glove compartment lift8. Connect dampers to glove compartment
W1027W-FR Filtres d’habitacle gnriques W1027W avec BioShield MSDS
Cabin Air Filters with Bioshield SDS
W1027W-SP Filtro de aire genrico para la cabina con BioShield MSDS

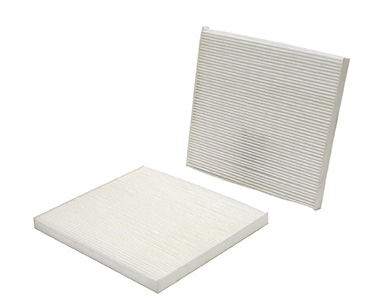

Instruction Sheet 24013 A LD 0.75 in Closed 10 in WIX Cabin Air Filters remove pollen, dust, soot and other air borne contaminates from the air inside a vehicle for normal and severe driving conditions.WIX cabin air filters are enhanced with Microban antimicrobial technology which inhibits the growth of microbes on filter media and protects against damaging bacteria, mold, and mildew.Where applicable, combination odor removing media reduces odors from the exhaust systems of nearby vehicles. WIX cabin air filters are recommended for OEM filter change interval.WIX offers a full line of high efficiency cabin air filters for passenger cars and light trucks. Particulate 0.00 Micron WIX FLTR CABINE
WIX Filtro De Aire De Cabina
WIX Cabin Air Filter WIX Cabin Air Panel Cabin Air Filter
FLTR CABINE
Filtro De Aire De C Cabin Air Panel 8.86 in
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| AC DELCO | CF1177F, CF177 | |
| CHEVROLET | 19338049 | |
| OTHER | 24013 | WP10234, 49368 |
| WIX FILTER CORP | 24013XP |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| CHEVROLET | CAPTIVA SPORT | 2012-2015 |
| CHEVROLET | EQUINOX | 2010-2017 |
| GMC | TERRAIN | 2010-2017 |
| HYUNDAI | AZERA | 2011-2017 |
| HYUNDAI | SANTA FE | 2013-2018 |
| HYUNDAI | SANTA FE SPORT | 2013-2018 |
| HYUNDAI | SANTA FE XL | 2019 |
| HYUNDAI | SONATA | 2011-2015 |
| KIA | CADENZA | 2014-2016 |
| KIA | OPTIMA | 2011-2015 |
| KIA | SEDONA | 2011-2012, 2014 |
| SATURN | VUE | 2008-2010 |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
