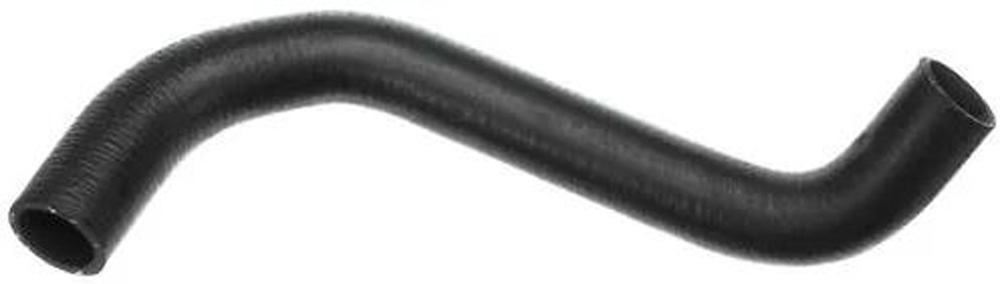

22954

Description

Technical Specifications

Part Number 22954Application Summary 2010-05 Chrysler, 300, V-6 2.7 L, UpperCenterline Length (in) 18.9Centerline Length (mm) 480Contains Spring NoInside Diameter 1 (in) 1.25Inside Diameter 1 (mm) 32Inside Diameter 2 (in) 1.44Inside Diameter 2 (mm) 37Marketing Description

Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications.

• Recommend for upper, lower, by-pass, heater and other coolant hose applications.
• Heat and ozone resistant cover.
• Engineered to resist electrochemical degradation – the leading cause of hose failure.
• Re-engineered materials resist vacuum collapse.This reduces the need for internal springs in many applications.
• Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications.

Temperature Rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications.

Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed.

Gates – Driven By Possibility

Modular Hose NoNumber of Branches 0Product Description – Invoice Coolant HoseProduct Description – Long Molded Coolant HoseProduct Description – Short Hose

Vehicle Fitment

Make	Model	Years
CHRYSLER	300	2005-2010
DODGE	CHARGER	2006-2010
DODGE	MAGNUM	2005-2008

This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
