Description
Technical Specifications

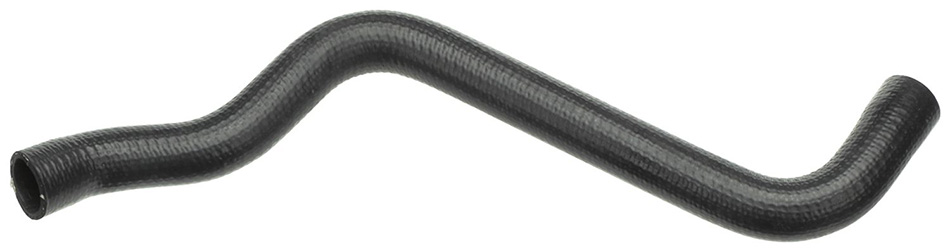

21574 1992-1991 Toyota, Corolla, 4-Cyl. 1.6 L, Lower – Pipe To Rad. 24.9 632 No 1.25 32
Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications.
- Recommend for upper, lower, by-pass, heater and other coolant hose applications.
- Heat and ozone resistant cover.
- Engineered to resist electrochemical degradation – the leading cause of hose failure.
- Re-engineered materials resist vacuum collapse.This reduces the need for internal springs in many applications.
- Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications.
Temperature Rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications.
Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed.
Gates – Driven By Possibility
No 0 Coolant Hose Molded Coolant Hose Hose
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| BUICK | ELECTRA | 1987 |
| BUICK | LESABRE | 1986-1988 |
| GEO | PRIZM | 1989-1992 |
| OLDSMOBILE | DELTA 88 | 1986-1988 |
| OLDSMOBILE | 98 | 1987 |
| PONTIAC | BONNEVILLE | 1987-1988 |
| TOYOTA | CELICA | 1990-1993 |
| TOYOTA | COROLLA | 1989-1992 |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
