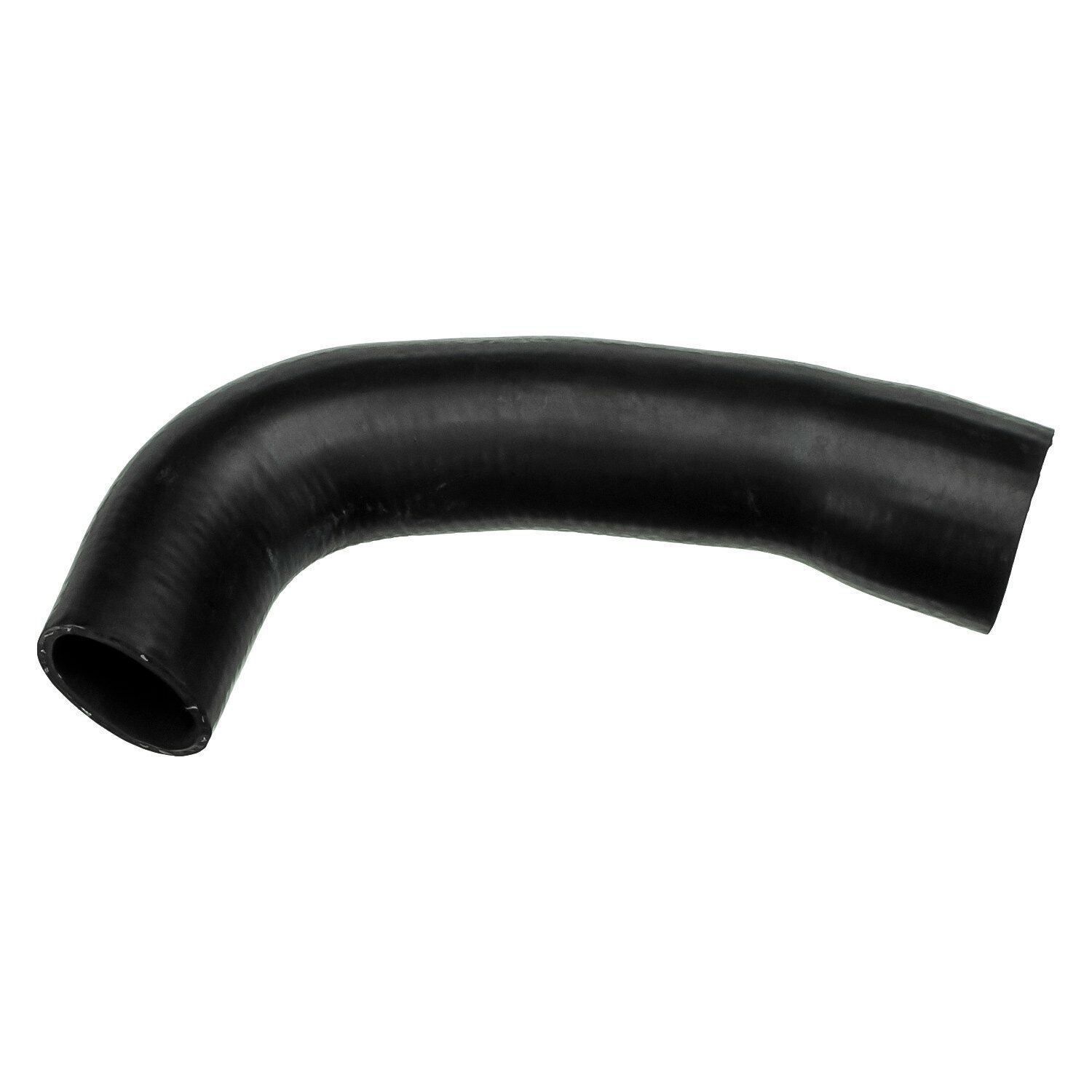

20845

Description

Technical Specifications

Part Number 20845 weight14 oz Application Summary 1971-1969 International, Scout, V-8 304, LowerCenterline Length (in) 12.7Centerline Length (mm) 323Contains Spring YesInside Diameter 1 (in) 2Inside Diameter 1 (mm) 51Inside Diameter 2 (in) 2.25Inside Diameter 2 (mm) 57Marketing Description

Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications.

• Recommend for upper, lower, by-pass, heater and other coolant hose applications.
• Heat and ozone resistant cover.
• Engineered to resist electrochemical degradation – the leading cause of hose failure.
• Re-engineered materials resist vacuum collapse.This reduces the need for internal springs in many applications.
• Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications.

Temperature Rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications.

Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed.

Gates – Driven By Possibility

Modular Hose NoNumber of Branches 0Product Description – Invoice Coolant HoseProduct Description – Long Molded Coolant HoseProduct Description – Short Hose

Vehicle Fitment

Make	Model	Years
INTERNATIONAL	SCOUT	1967-1970

This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
