Description

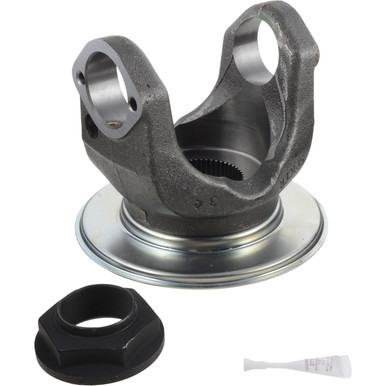

The Dana Spicer 131530K is a 1710 series end yoke assembly designed for splined pinion shaft installations. This BP-style yoke features a 49-tooth involute spline with a 2.544 in. major diameter and a 3.819 in. hub diameter. The outside yoke dimension measures 6.094 in., the yoke bearing bore is 1.938 in., and the centerline-to-end-hub length is 6.050 in. A slinger and plug are included, and the assembly ships as a complete kit with nut (per the factory invoice designation KIT-YOKE ASSY & NUT). Steel construction throughout. Sold individually. Call us to confirm proper fit for your driveline application.
Features
1710 series driveline end yoke assembly
49-tooth involute spline, 2.544 in. major diameter
BP yoke style, splined hole type
Outside yoke dimension: 6.094 in.; bearing bore: 1.938 in.
Hub diameter 3.819 in.; centerline to end hub 6.050 in.
Includes slinger, plug, and nut – complete kit, steel construction
Tech Specs
- Series: 1710
- Yoke Style: BP
- Type: Splined Hole
- Spline Count: 49
- Involute Spline: Yes
- Major Diameter: 2.544 in.
- Hub Diameter (R): 3.819 in.
- C/L To End Hub (S): 6.050 in.
- Outside Yoke Dimension (E): 6.094 in.
- Yoke Bearing Dimension (D): 1.938 in.
- Length Thru Hole (Q): 2.677 in.
- C-Bore Depth: 0.240 in.
- Includes Slinger/Plug: Yes
- Kit Contents: Yoke assembly and nut
- Material: Steel
- Package Type: Each
- VMRS Code: 022003072
Additional Information
The 131530K is also referenced in supplier systems as 131530KETN and SP131530K. These are alternate catalog cross-references for the same Dana Spicer part. Confirm the spline count and series against your driveshaft before ordering, or call Pro Gear and Transmission for application assistance.
